Side-aligned ZIP C

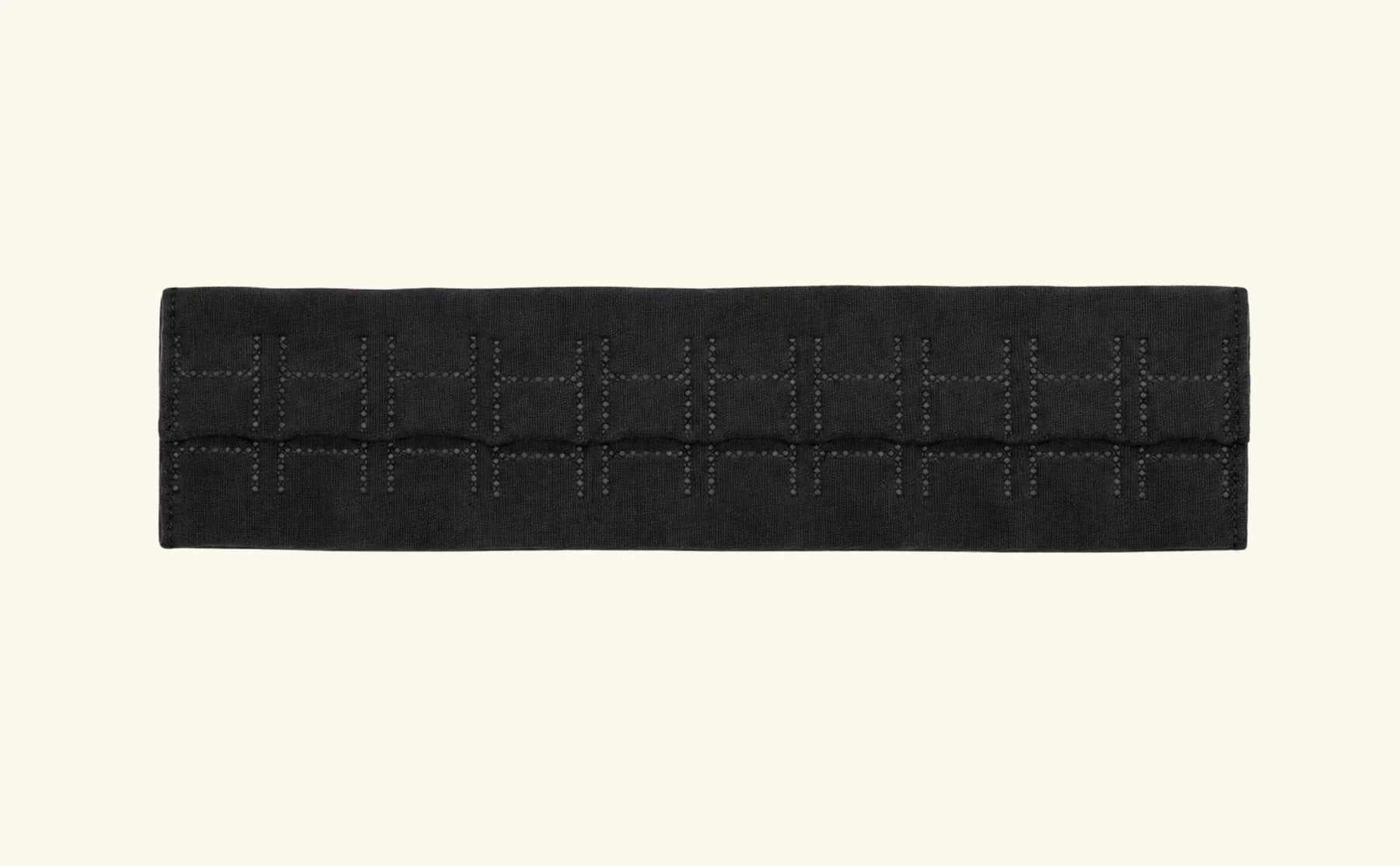

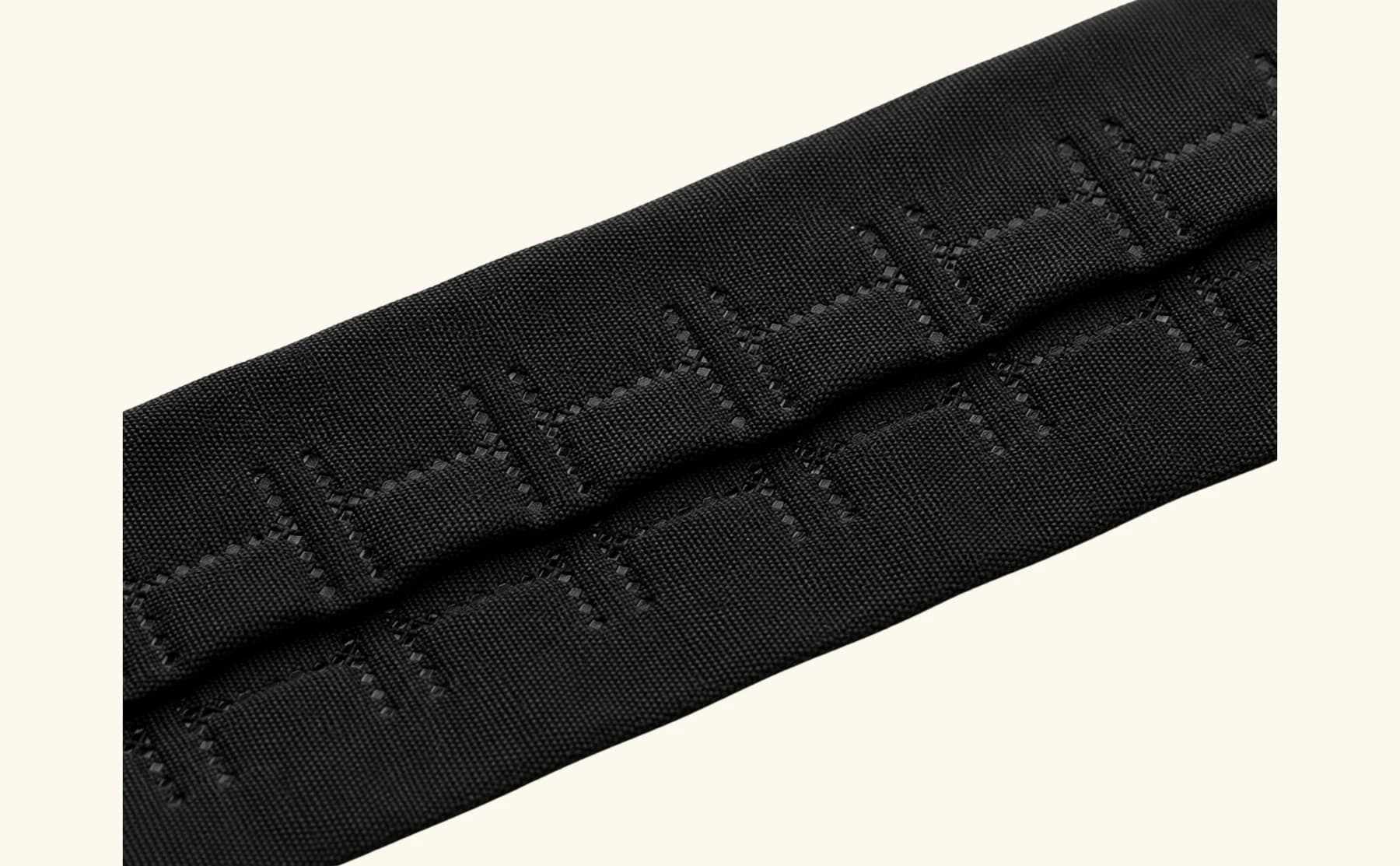

ZIP C, side magnetic zip
Side closure
The ZIP C is designed for edges, flaps, pockets and off-centre openings. The magnetic pockets are positioned on one side of the textile band.

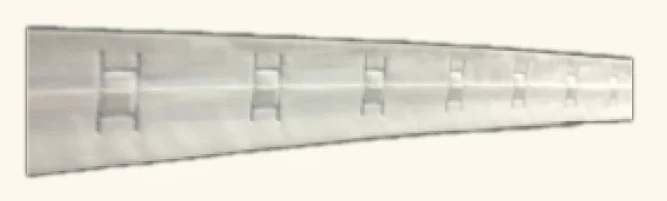

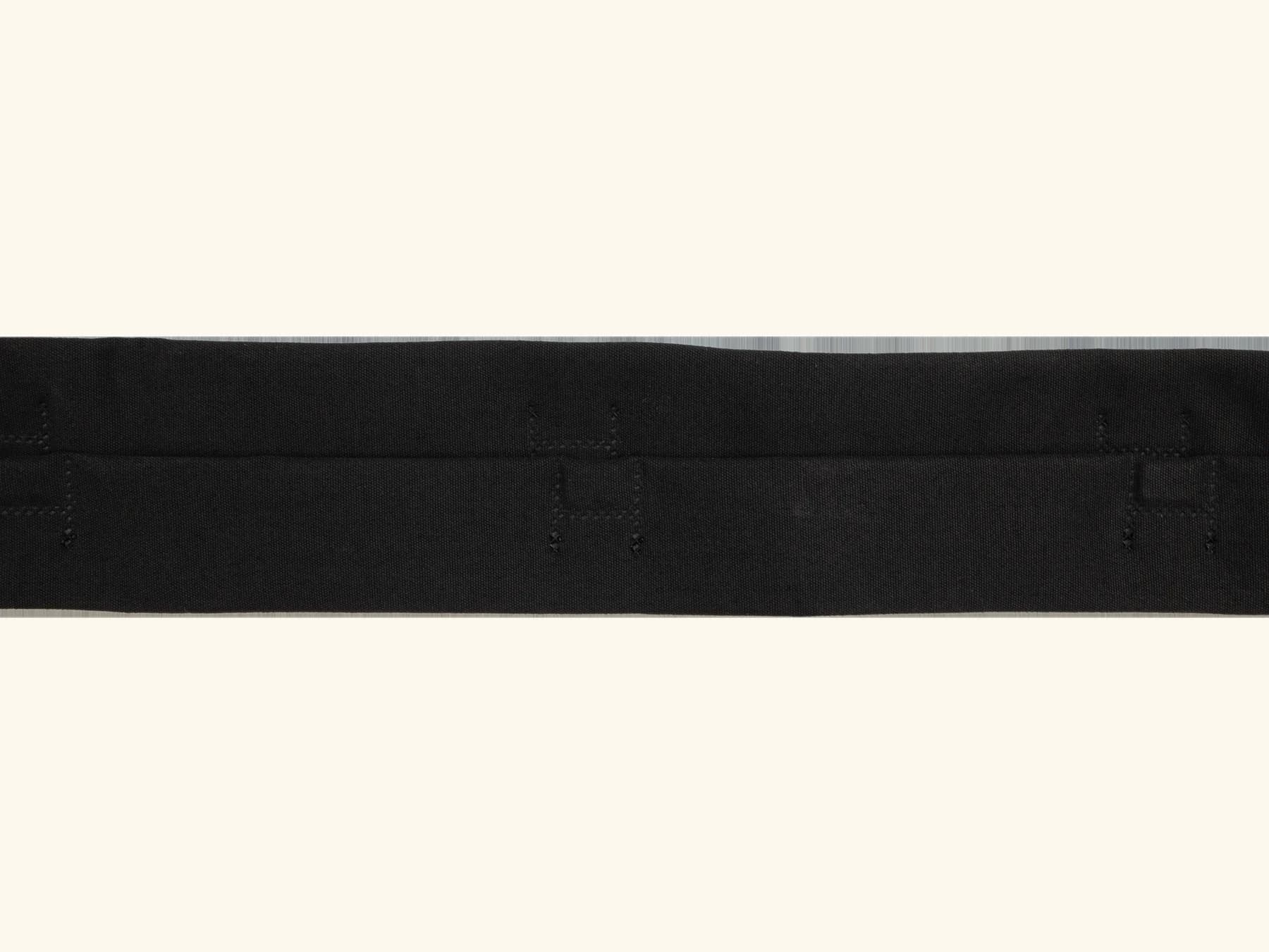

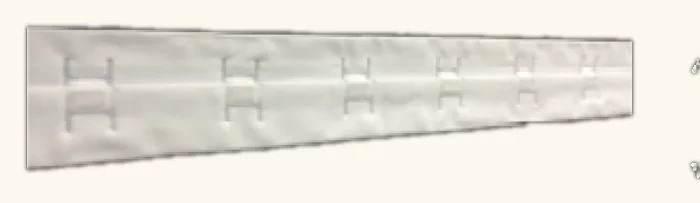

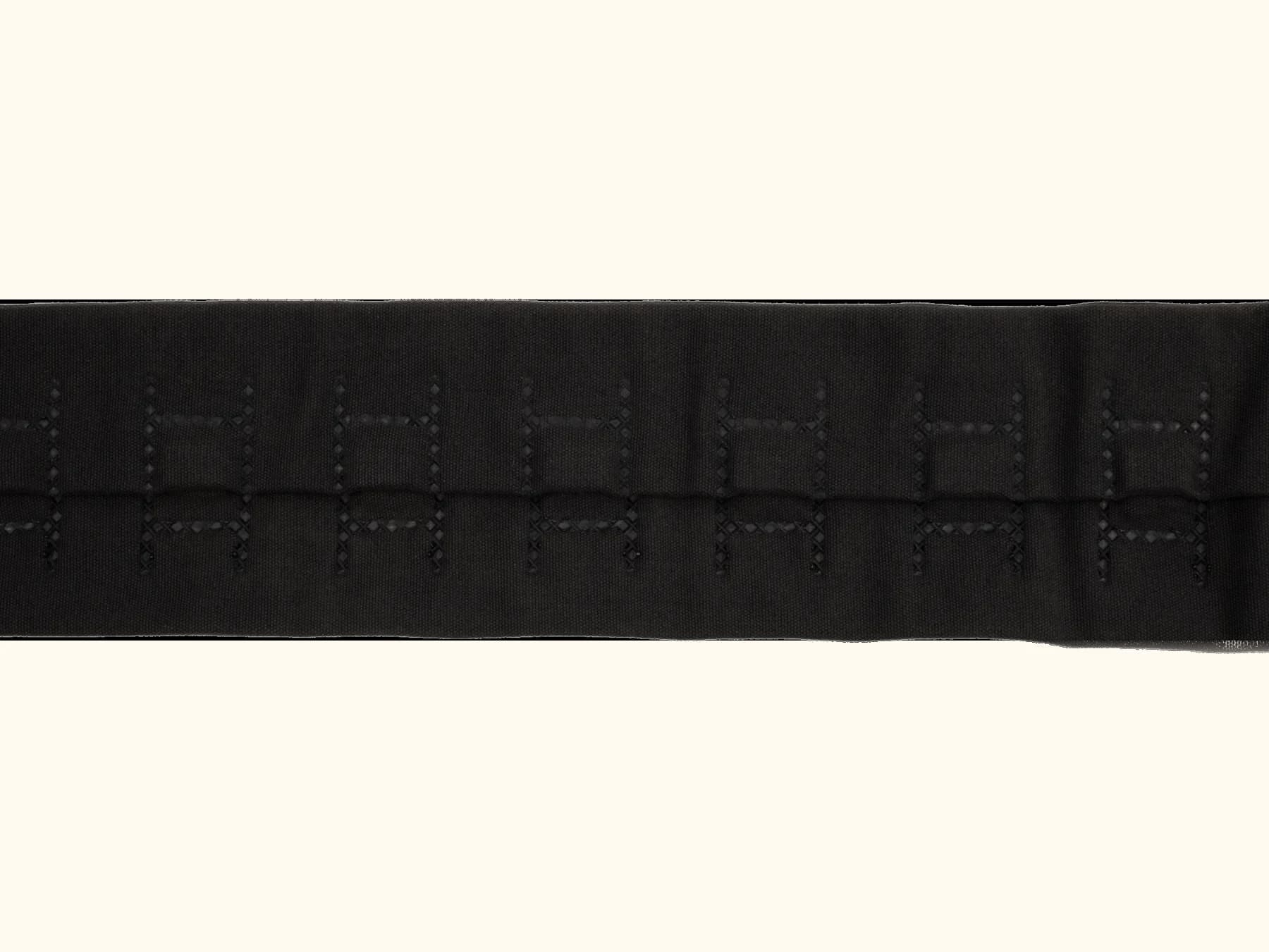

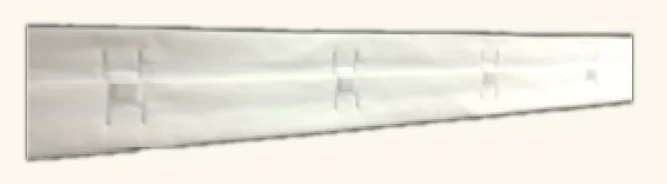

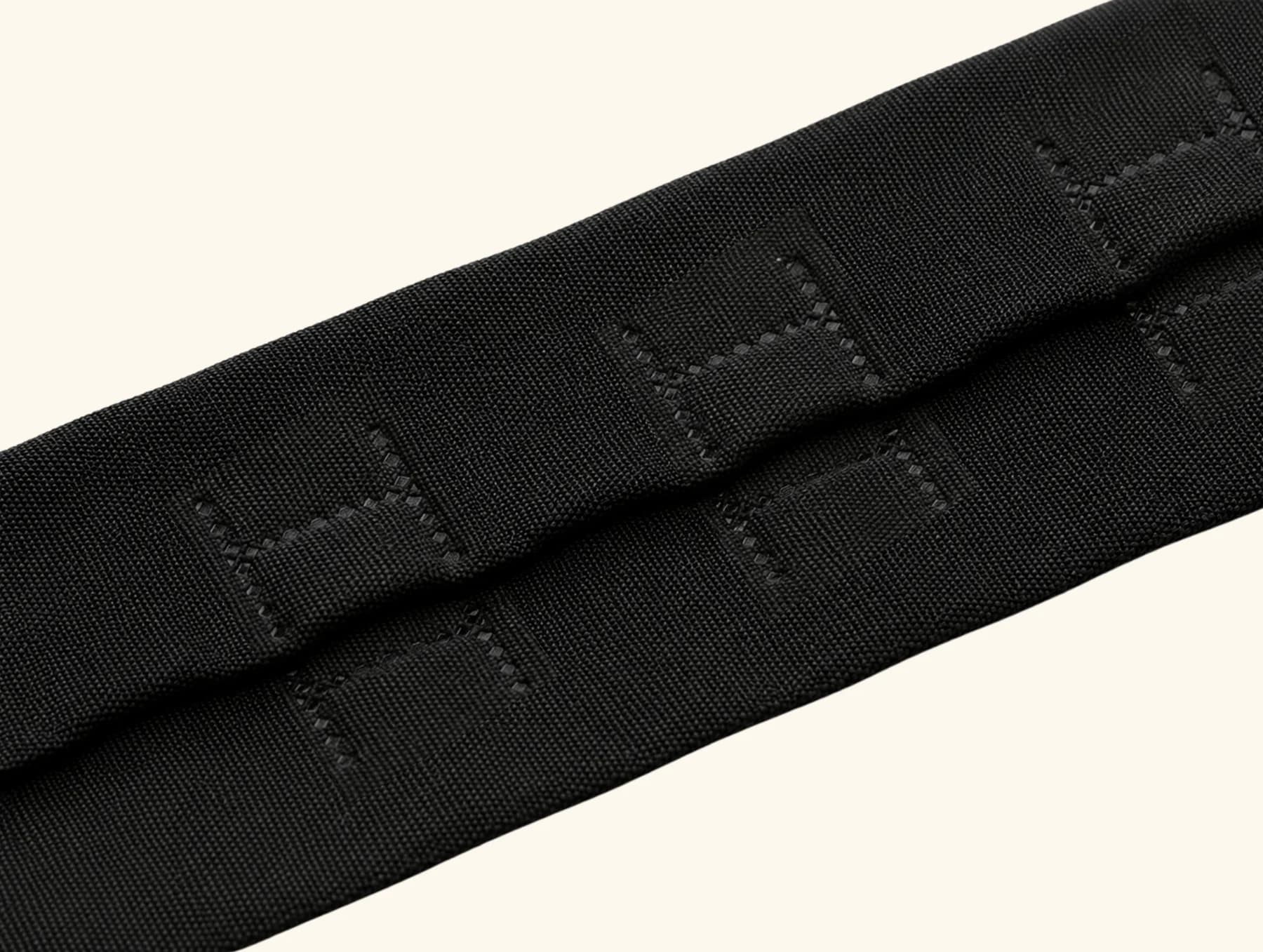

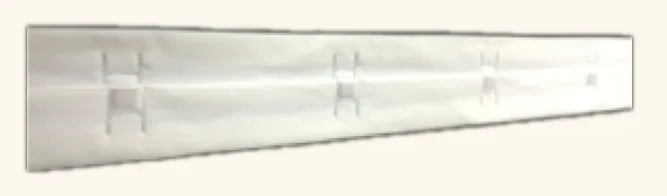

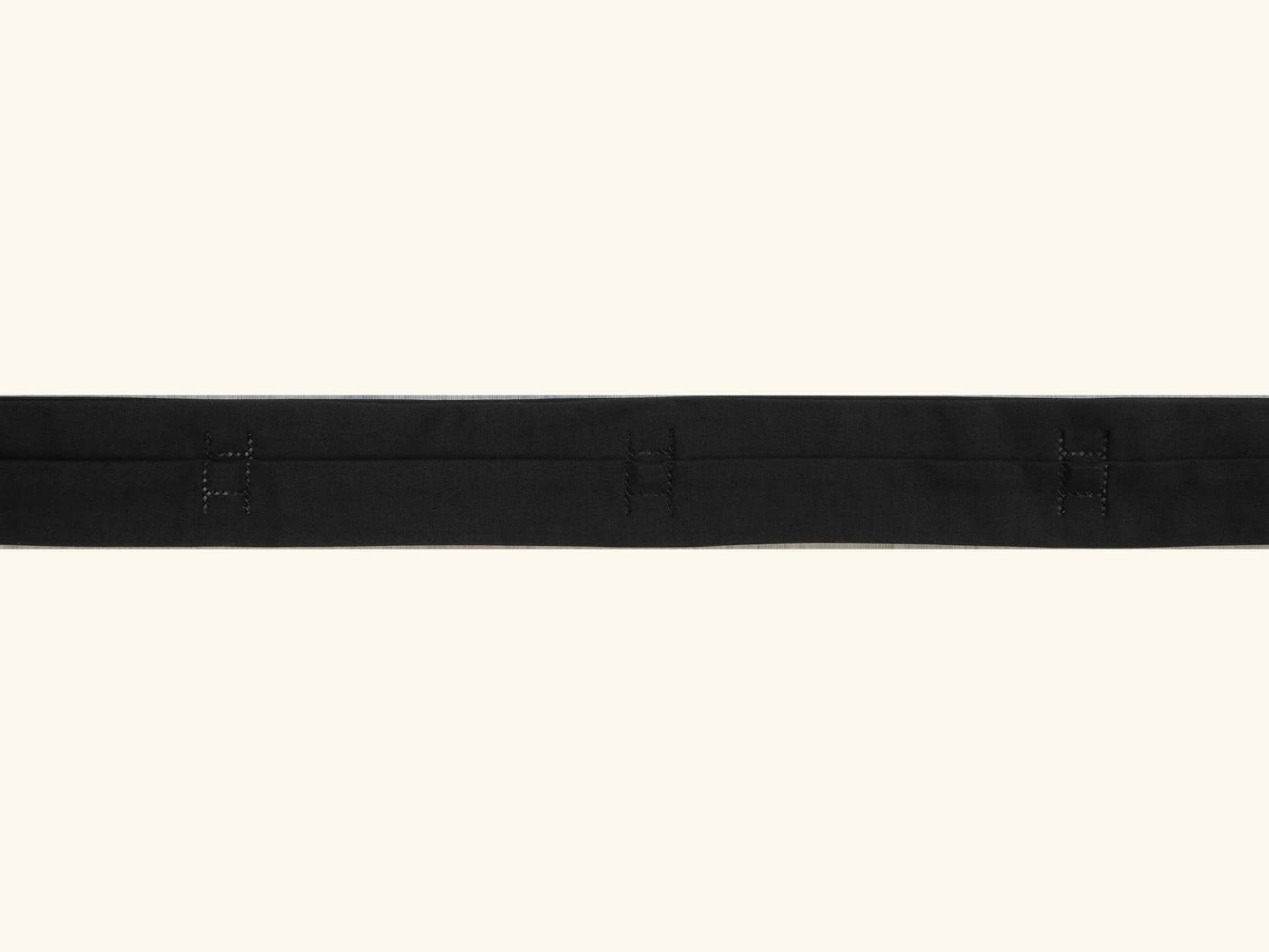

Choose your spacing: 10 standard references
Same 20 mm band, same 6 × 4 × 1.5 mm Nd-Fe-B magnets: from one reference to the next, only the spacing between imprints changes. Tight spacing multiplies the closure points: maximum continuity and hold for demanding openings. Wide spacing lightens the band and the cost per metre, ideal for flap retention and long runs. Every reference is sold by the metre, in black or white.
Different spacing, magnetic grade (N38 to N52) or specific colour: our design office adapts the band to your specification.
Special variants
Beyond the ten standard spacings, two variants address specific needs. Each reference has its own datasheet. Our design office qualifies the right variant for your project.
Zip CD, paired pockets
Magnetic pockets are grouped in pairs separated by a wide interval: the closure is paced over long runs, with fewer magnetic points per metre.
Zip CE, fitted with Magnet Blocks
The zip directly receives Magnet Blocks (V04 to V12) at 3, 5 or 8 cm intervals, for closures under heavy direct load: coats, jackets, worn equipment.
Band
20 mm
Magnets
Nd-Fe-B 6×4×1.5 mm
Service
−50 / +90 °C
Care
Machine washable
Finish
Zinc + epoxy, nickel-free
Technical specifications - ZIP C
Swipe the table to read the variants.

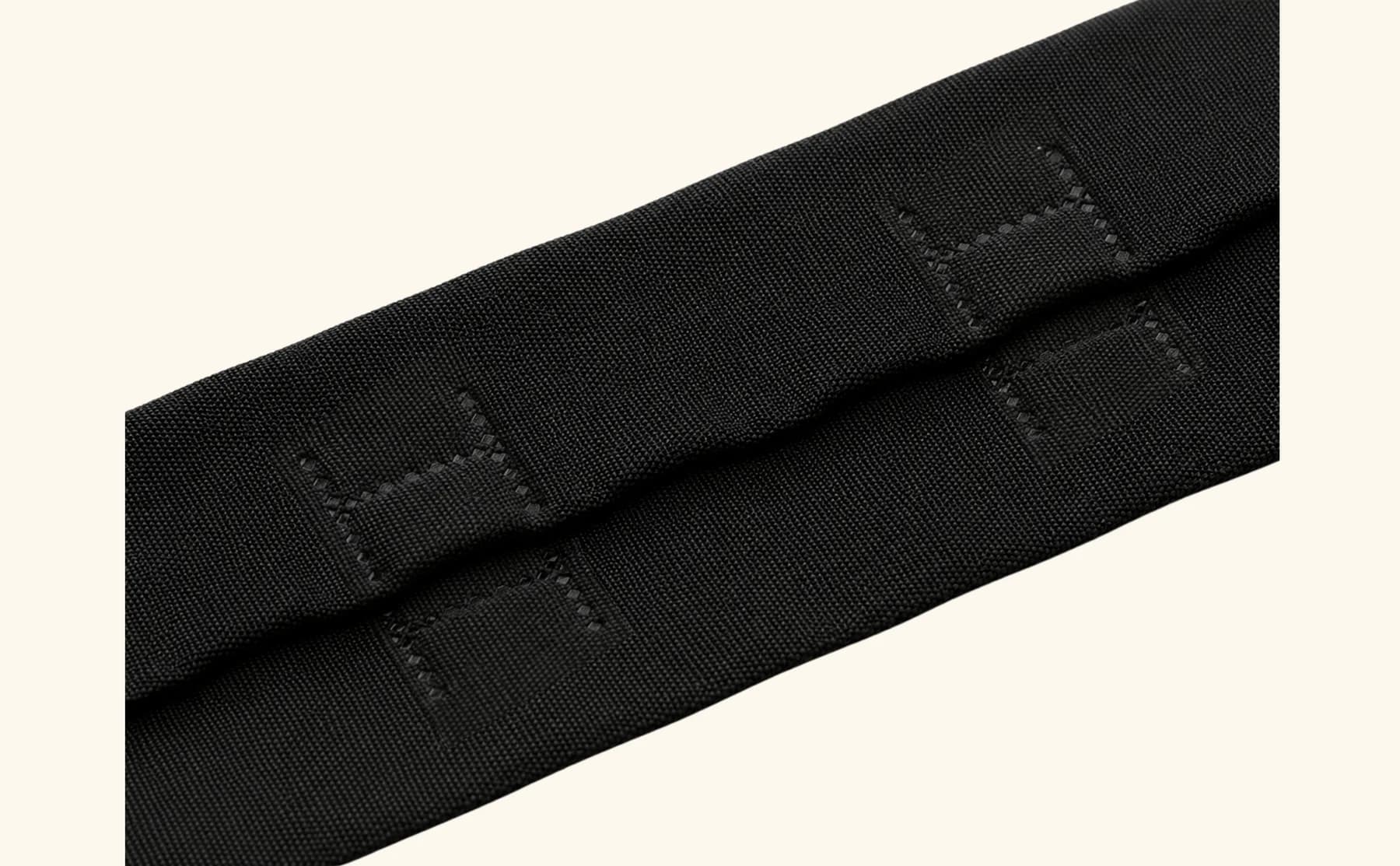

| Parameter | ZC-01 | ZC-03 | ZC-05 |
|---|---|---|---|
| Geometry | Side-aligned | Side-aligned | Side-aligned |
| Application | Edges, flaps, pockets, off-centre openings | Edges, flaps, pockets, off-centre openings | Edges, flaps, pockets, off-centre openings |
| Spacing (interval I) | 1.2 cm | 3 cm | 5 cm |
| Relative strength | High | Standard | Light |
| Integration | Sewing, stitching or welding | Sewing, stitching or welding | Sewing, stitching or welding |
| Material compatibility | To validate per application | To validate per application | To validate per application |
| Washing | Machine ≤ 80 °C · close first | Machine ≤ 80 °C · close first | Machine ≤ 80 °C · close first |
| Temperature | −50 °C to +90 °C | −50 °C to +90 °C | −50 °C to +90 °C |
Range variants
On request
Geometry and integration
Side-aligned
Need support?
We help you define the right solution for your project and validate the first sample.
