Centred ZIP G

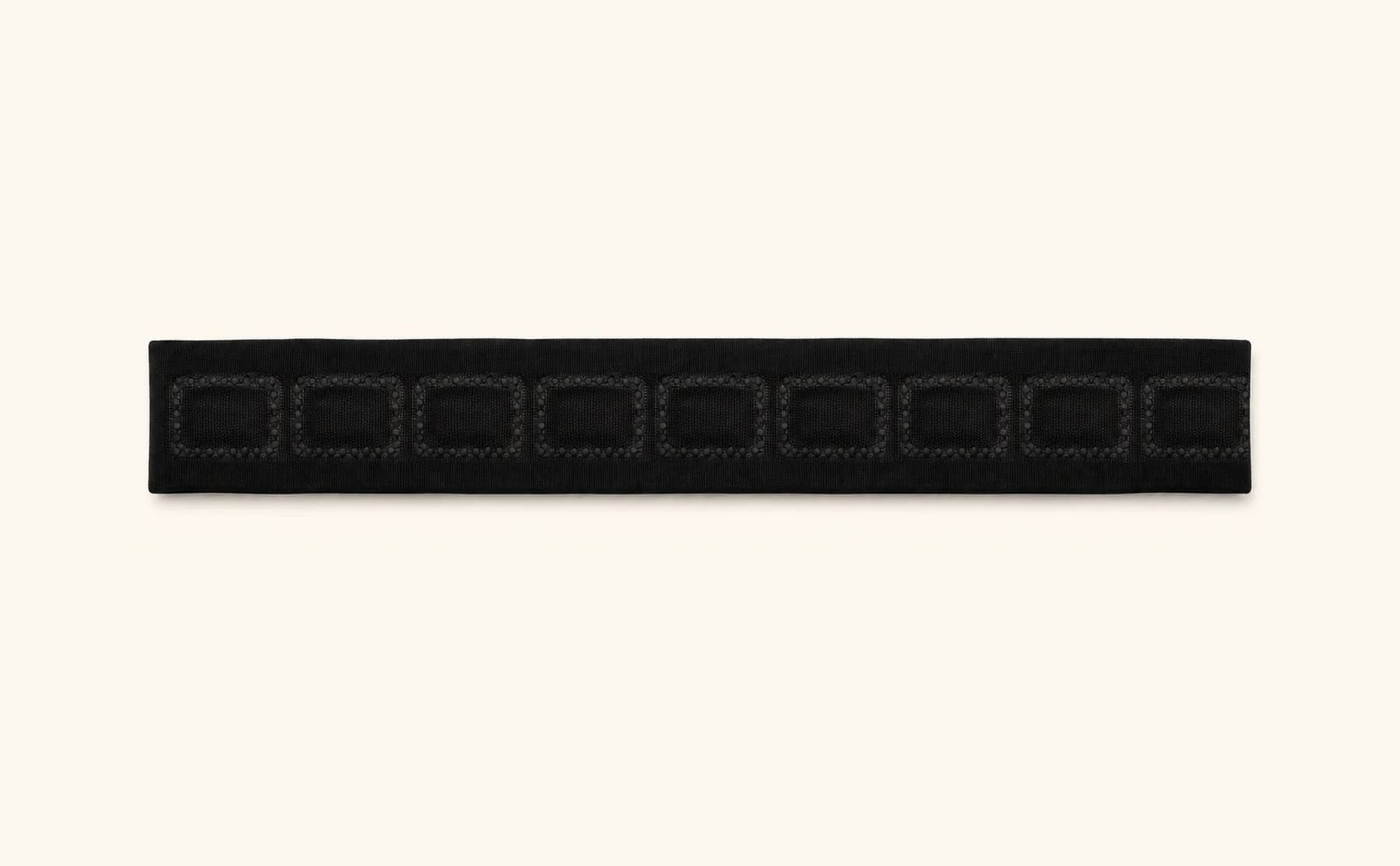

ZIP G, centred magnetic zip
Centred closure
The ZIP G is designed for front openings and flat alignments. The magnetic pockets are centred, with stitching zones on both sides.
Choose your spacing: 10 standard references
Same 20 mm band, same 6 × 4 × 1.5 mm Nd-Fe-B magnets: from one reference to the next, only the spacing between imprints changes. Tight spacing multiplies the closure points: maximum continuity and hold for demanding openings. Wide spacing lightens the band and the cost per metre, ideal for flap retention and long runs. Every reference is sold by the metre, in black or white.
Different spacing, magnetic grade (N38 to N52) or specific colour: our design office adapts the band to your specification.
Special variants
Beyond the ten standard spacings, two variants address specific needs. Each reference has its own datasheet. Our design office qualifies the right variant for your project.
Zip GD, paired pockets
The Zip CD equivalent in centred geometry: magnetic pockets grouped in pairs with a wide interval between pairs, pacing the closure over long runs.
Zip GE, fitted with Magnet Blocks
The Zip CE equivalent in centred geometry: the zip directly receives Magnet Blocks (V04 to V12) at 3, 5 or 8 cm intervals, for heavily loaded closures.
Band
20 mm
Magnets
Nd-Fe-B 6×4×1.5 mm
Service
−50 / +90 °C
Care
Machine washable
Finish
Zinc + epoxy, nickel-free
Technical specifications - ZIP G
Swipe the table to read the variants.
| Parameter | ZG-01 | ZG-03 | ZG-05 |
|---|---|---|---|
| Geometry | Centred | Centred | Centred |
| Application | Front openings, flat alignments, central axes | Front openings, flat alignments, central axes | Front openings, flat alignments, central axes |
| Spacing (interval I) | 1.2 cm | 3 cm | 5 cm |
| Relative strength | High | Standard | Light |
| Integration | Sewing, stitching or welding | Sewing, stitching or welding | Sewing, stitching or welding |
| Material compatibility | To validate per application | To validate per application | To validate per application |
| Washing | Machine ≤ 80 °C · close first | Machine ≤ 80 °C · close first | Machine ≤ 80 °C · close first |
| Temperature | −50 °C to +90 °C | −50 °C to +90 °C | −50 °C to +90 °C |
Range variants
On request
Geometry and integration
Centred
Need support?
We help you define the right solution for your project and validate the first sample.
