Side-aligned ZIP C
ZIP C magnetic zips
Side closure

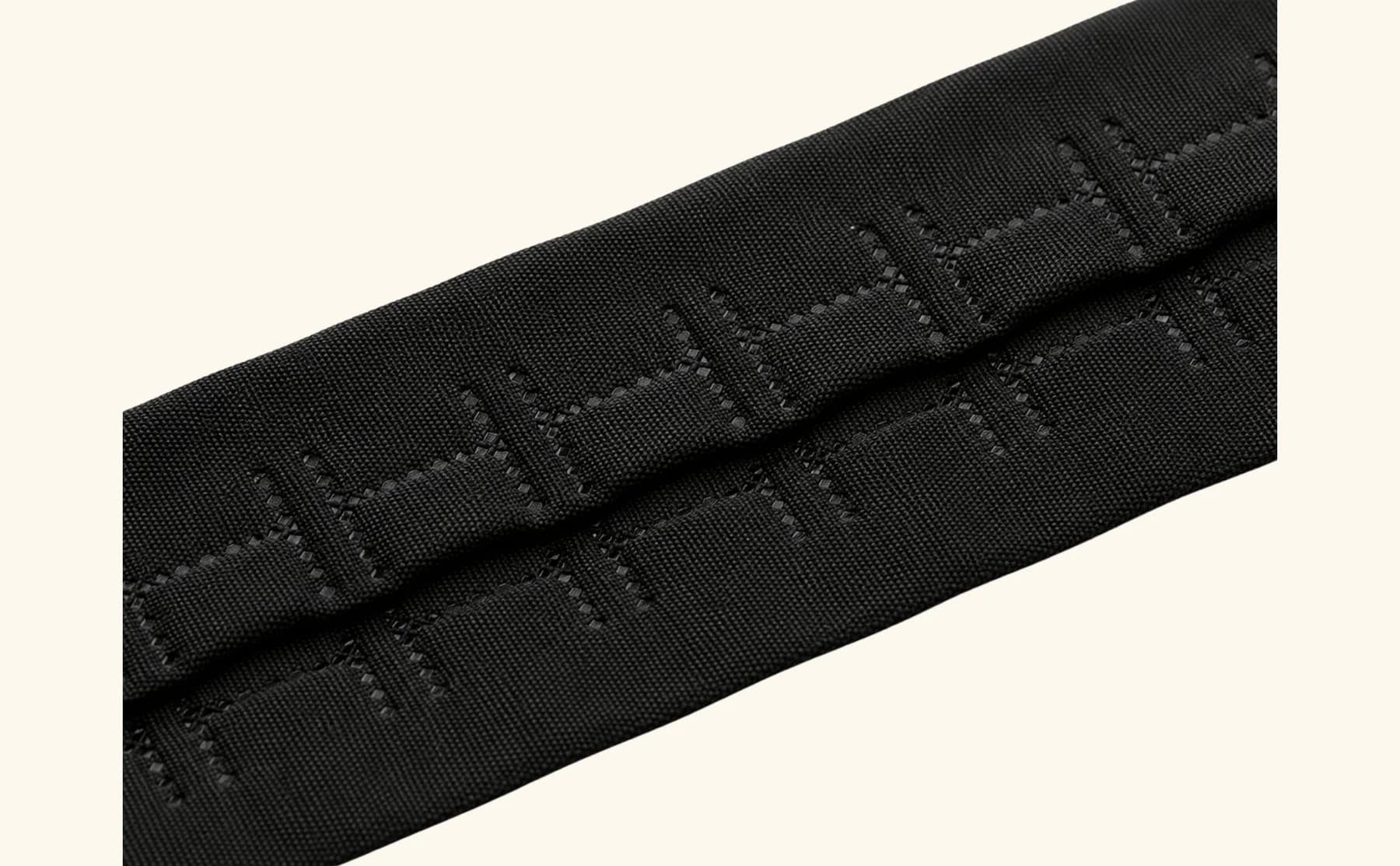

The ZIP C is designed for edges, flaps, pockets and off-centre openings. The magnetic pockets are positioned on one side of the textile band.
Choose your spacing — 10 standard references
Same 20 mm band, same 6 × 4 × 1.5 mm Nd-Fe-B magnets: from one reference to the next, only the spacing between imprints changes. Tight spacing multiplies the closure points — maximum continuity and hold for demanding openings. Wide spacing lightens the band and the cost per metre — ideal for flap retention and long runs. Every reference is sold by the metre, in black or white.
Different spacing, magnetic grade (N38–N52) or specific colour: our design office adapts the band to your specification.
Special variants
Beyond the ten standard spacings, two variants address specific needs. Each reference has its own datasheet — our design office qualifies the right variant for your project.
Zip CD — paired pockets
Magnetic pockets are grouped in pairs separated by a wide interval: the closure is paced over long runs, with fewer magnetic points per metre.
Zip CE — fitted with Magnet Blocks
The zip directly receives Magnet Blocks (V04 to V12) at 3, 5 or 8 cm intervals — for closures under heavy direct load: coats, jackets, worn equipment.
Band
20 mm
Magnets
Nd-Fe-B 6×4×1.5 mm
Service
−50 / +90 °C
Care
Machine washable
Finish
Zinc + epoxy, nickel-free
Technical specifications - ZIP C
Swipe the table to read the variants.
| Parameter | ZC-01 | ZC-03 | ZC-05 |
|---|---|---|---|
| Geometry | Side-aligned | Side-aligned | Side-aligned |
| Application | Edges, flaps, pockets, off-centre openings | Edges, flaps, pockets, off-centre openings | Edges, flaps, pockets, off-centre openings |
| Spacing (interval I) | 1.2 cm | 2 cm | 3 cm |
| Relative strength | High | Standard | Light |
| Integration | Sewing, stitching or welding | Sewing, stitching or welding | Sewing, stitching or welding |
| Material compatibility | To validate per application | To validate per application | To validate per application |
| Washing | Machine ≤ 80 °C · close first | Machine ≤ 80 °C · close first | Machine ≤ 80 °C · close first |
| Temperature | −50 °C to +90 °C | −50 °C to +90 °C | −50 °C to +90 °C |
Range variants
On request
Geometry and integration
Side-aligned
Need support?
We help you define the right solution for your project and validate the first sample.
