Centred ZIP G

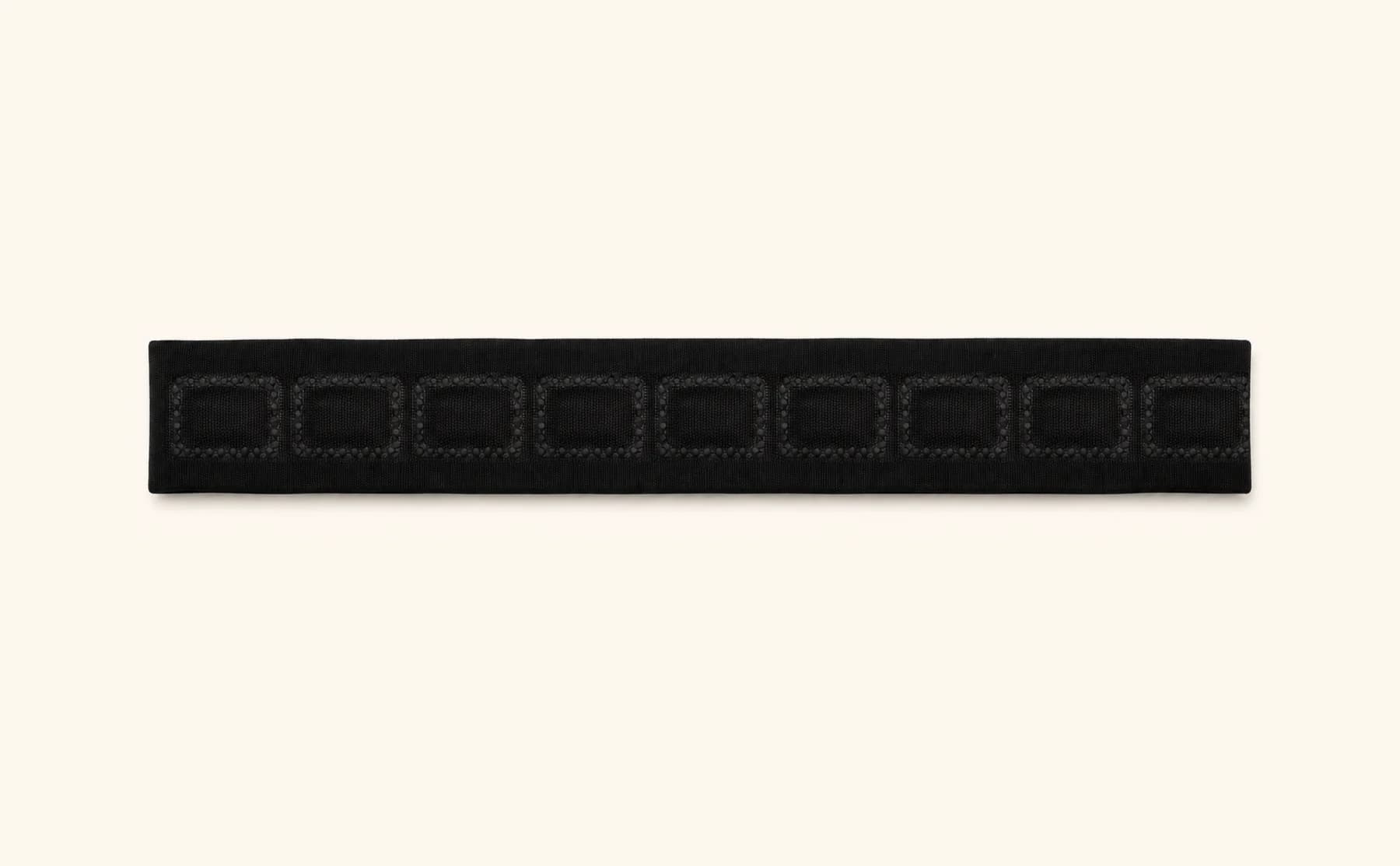

ZIP G - Centred geometry
Centred closure
The ZIP G is designed for front openings and flat alignments. The magnetic pockets are centred, with stitching zones on both sides.
Choose your spacing — 10 standard references
Same 20 mm band, same 6 × 4 × 1.5 mm Nd-Fe-B magnets: from one reference to the next, only the spacing between imprints changes. Tight spacing multiplies the closure points — maximum continuity and hold for demanding openings. Wide spacing lightens the band and the cost per metre — ideal for flap retention and long runs. Every reference is sold by the metre, in black or white.
Different spacing, magnetic grade (N38–N52) or specific colour: our design office adapts the band to your specification.
Special variants
Beyond the ten standard spacings, two variants address specific needs. Each reference has its own datasheet — our design office qualifies the right variant for your project.
Zip GD — paired pockets
The Zip CD equivalent in centred geometry: magnetic pockets grouped in pairs with a wide interval between pairs, pacing the closure over long runs.
Zip GE — fitted with Magnet Blocks
The Zip CE equivalent in centred geometry: the zip directly receives Magnet Blocks (V04 to V12) at 3, 5 or 8 cm intervals, for heavily loaded closures.
Band
20 mm
Magnets
Nd-Fe-B 6×4×1.5 mm
Service
−50 / +90 °C
Care
Machine washable
Finish
Zinc + epoxy, nickel-free
Technical specifications - ZIP G
Swipe the table to read the variants.

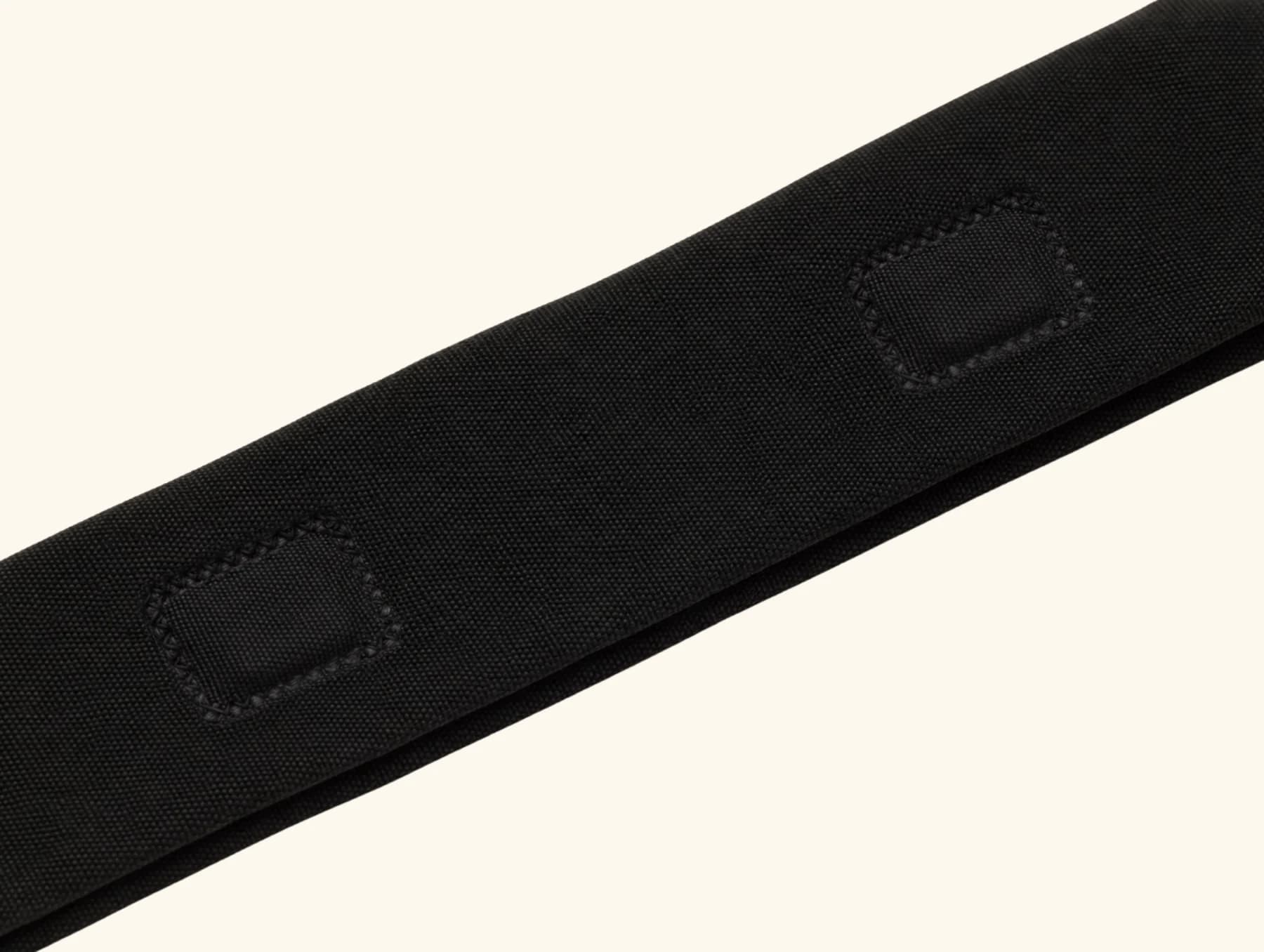

| Parameter | ZG-01 | ZG-03 | ZG-05 |
|---|---|---|---|
| Geometry | Centred | Centred | Centred |
| Application | Front openings, flat alignments, central axes | Front openings, flat alignments, central axes | Front openings, flat alignments, central axes |
| Spacing (interval I) | 1.2 cm | 2 cm | 3 cm |
| Relative strength | High | Standard | Light |
| Integration | Sewing, stitching or welding | Sewing, stitching or welding | Sewing, stitching or welding |
| Material compatibility | To validate per application | To validate per application | To validate per application |
| Washing | Machine ≤ 80 °C · close first | Machine ≤ 80 °C · close first | Machine ≤ 80 °C · close first |
| Temperature | −50 °C to +90 °C | −50 °C to +90 °C | −50 °C to +90 °C |
Range variants
On request
Geometry and integration
Centred
Need support?
We help you define the right solution for your project and validate the first sample.
